Tank Plating Saddles

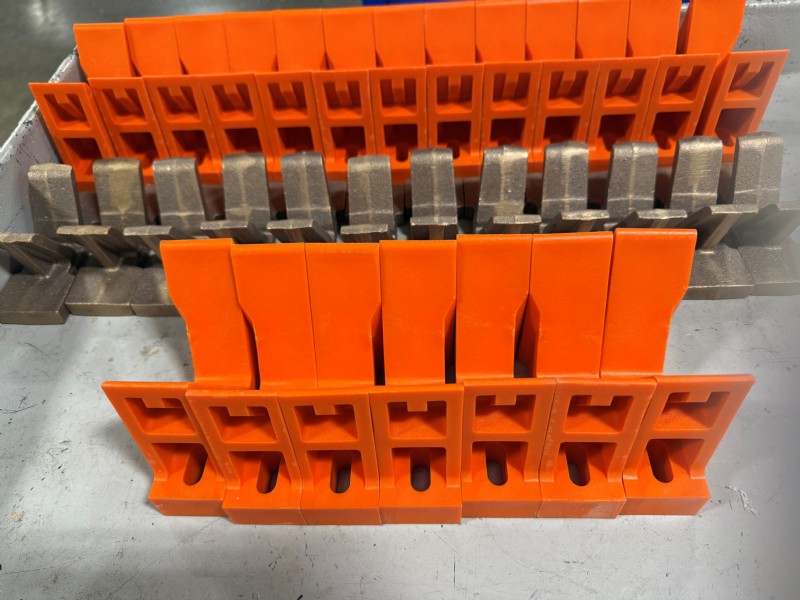

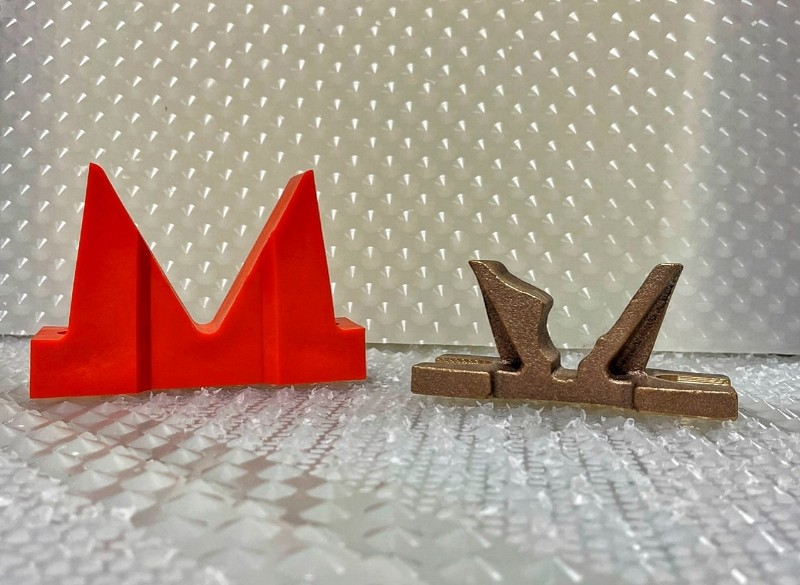

When plating metal components, maintaining and replacing critical elements is essential to ensuring consistent performance and product integrity. With decades of expertise in the metal finishing industry, Novo Metal Finishing Equipment offers a comprehensive selection of barrel, tank, and rack plating saddles. Engineered for seamless integration with both automatic and manual plating systems, our robust bronze saddles and corrosion-resistant polypropylene saddles deliver a precise fit for your plating line.

When it comes to electroplating, the process speed depends on how much current you can push through the system. That’s why it’s so essential to use saddles machined for maximum contact. Our bronze saddles are designed to make solid contact with your barrel or rack horns, helping you get the most out of every amp.

For electroless plating and rinse operations, our rugged polypropylene saddles are precision-engineered to fit seamlessly with your process line. Our saddles endure chemical exposure and mechanical stress, even in the most challenging environments.

Request a Quote ›

The Novo MFE Advantage:

  • Durability

    Routine replacement of barrel and rack saddles is critical to the equipment preventive maintenance cycle. Novo MFE provides high quality saddles and horns that withstand high electrical currents, hostile chemical abuse and manual wear to improve the lifespan of these critical components.

  • High Conductivity

    For electroplating, the Novo MFE Bronze Alloy V-Block saddles are machined to ensure a clean and even contact junction. The V-Block design provides a large and consistent contact area, ensuring maximum current flow and reducing power losses. Novo MFE also provides horns for both barrel and rack plating, ensuring maximum current flow past the hanger arm or through the flight bar.

  • Corrosion Resistance

    Maintaining clean contact surfaces and preventing contamination are the principal concerns for the maintenance team on a plating line. The Novo MFE V-Block Saddles are fabricated from corrosion resistant bronze alloy or polypropylene, making it easier to clean and keep clean.

V-Block Saddle Specifications:

Material Options: Bronze Alloy, Polypropylene
Size Ranges: X to Y
Current Capacity: (Bronze Alloy only) 100 amps to 8,000 amps

View Novo Metal Finishing Technology’s Horns for both barrel and rack applications.

FAQs:

  • Are Novo MFE plating saddles corrosion resistant?

    Yes. Both bronze alloy and polypropylene saddles are designed for harsh plating environments. Their corrosion-resistant construction helps maintain clean contact surfaces and extends service life.

  • Can Novo MFE saddles fit existing plating lines?

    Yes. Novo Metal Finishing Equipment manufactures exact-fit replacement saddles designed to integrate with both manual and automatic plating systems. Custom sizing and configurations are available to match existing equipment.

  • Can tank plating saddles improve plating quality?

    Yes. Properly machined saddles improve electrical conductivity and maintain stable contact throughout the plating cycle. This can help improve coating consistency, reduce power loss, and support higher-quality finishes.

  • Does Novo Metal Finishing Equipment offer other plating replacement components?

    Yes. In addition to tank plating saddles, Novo MFE manufactures and supplies plating barrels, hanger arms, gears, danglers, rack plating accessories, and other replacement components for metal finishing systems.

  • How often should plating saddles be replaced?

    Tank plating saddles should be inspected regularly as part of a preventive maintenance program. Over time, exposure to chemicals, electrical current, and mechanical wear can reduce performance and contact quality. Routine replacement helps prevent downtime and inconsistent plating results.

  • What are tank plating saddles?

    Tank plating saddles are support and electrical contact components used in electroplating systems. They help secure plating barrels, racks, or horns while providing reliable current transfer and positioning within the plating line.

  • What current capacities are available for bronze saddles?

    Novo MFE bronze alloy saddles are available in a wide range of current capacities, from approximately 100 amps up to 8,000 amps depending on the application requirements.

  • What is the advantage of bronze V-Block saddles?

    Bronze V-Block saddles are machined to maximize contact area with barrel or rack horns, allowing for improved current transfer and reduced power loss. This helps increase plating efficiency and maintain consistent coating quality.

  • What materials are Novo MFE tank plating saddles made from?

    Novo Metal Finishing Equipment offers tank plating saddles in corrosion-resistant bronze alloy and polypropylene. Bronze saddles are ideal for electroplating applications requiring electrical conductivity, while polypropylene saddles are commonly used in rinse tanks and electroless plating systems.

  • What plating applications use tank saddles?

    Tank saddles are commonly used in barrel plating, rack plating, electroless plating, and rinse tank operations. They support plating line components while ensuring alignment and reliable performance throughout the finishing process.

  • When should polypropylene saddles be used?

    Polypropylene saddles are best suited for non-electrified applications such as rinse tanks or electroless plating lines. They provide excellent chemical resistance and durability without the need for electrical conductivity.

  • Why are plating saddles important in electroplating?

    Plating saddles play a critical role in maintaining strong electrical contact between the power source and the plating rack or barrel. Proper contact improves current flow, plating consistency, and overall process efficiency.
